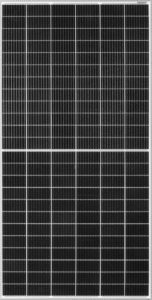

Half-Cell monocrystalline 410 WP

  • 10 Years Product Warranty
  • High Efficiency Solar Modul (upto 20.3%)
  • 0.55% Annual Degradation Over 25 Years

OUTPUT POSITIVE TOLERANCE
Guaranteed 0~+5W positive tolerance to ensure power output.

INNOVATIONAL HALF CUT TECHNOLOGY
Better shading tolerance, higher reliability.
INNOVATIONAL MULTI BUSBAR TECHNOLOGY
Higher light absorption, lower risk of microcrack.
SUPER PERC+ CELL TECHNOLOGY
Higher module power and module efficiency, lower power degradation.
PID RESISTANCE
Excellent PID resistance.

Module Dimension

Variant & Spesification

ELECTRICAL SPECIFICATIONS
STC rated output (Pmpp)410 WP
Rated voltage (Vmpp) at STC41.85 V
Rated current (lmpp) at STC9.80 A
Open circuit voltage (Voc) at STC49.80 V
Short circuit current (Isc) at STC10.38 A
Module efficiency20.3%
Rated output (Pmpp) at NMOT304.8 WP
Rated voltage (Vmpp) at NMOT38.84 V
Rated current (Impp) at NMOT7.85 A
Open circuit voltage (Voc) at NMOT46.64 V
Short circuit current (Isc) at NMOT8.36 A
Temperature coefficient (Pmpp)-0.35%/0.35%/°C
Temperature coefficient (Isc)+0.035%/0.035%/°C
Temperature coefficient (Voc)-0.28%/0.28%/°C
Nominal module operating temperature (NMOT)41±22°C
Maximum system voltage (IEC/UL)1500VDC
Number of diodes3
Junction box IP ratingIP68
Maximum series fuse rating20 A

STC: Irradiance 1000W/m2, Cell Temperature 25 25°C, AM=1.5 NMOT: Irradiance 800W/m2, Ambient Temperature 20 20°C, AM=1.5, Wind Speed 1m/s

MECHANICAL SPECIFICATIONS
Outer dimensions (L x W x H)2018 x 1002 x 35 mm
Frame technologyAluminum, silver anodized
Front glass thickness3.2 mm
Cable length (IEC/UL)Portrait: 350 mm, Landscape : 1200 mm
Cable diameter (IEC/UL)4 mm² / 12 AWG
①Maximum mechanical test load5400 Pa (front) / 2400 Pa (back)
Fire performance (IEC/UL)Class C (IEC) or Type 4 (UL)
Connector type (IEC/UL)HCB40 / MC4 EVO2

①Refer to installation manual or contact technical department. Maximum Mechanical Test Load=1.5 1.5×Maximum Mechanical Design Load.
