HOME B
2.5 KW (1 Phase)
- Excellent dust-proof performance with separate compartment design
- Built-in LiFePO4 lithium battery
- Intuitive display of battery SOC via 5-bar indicator lights
- Multiple DC output ports (5VDC/3A ports, 12VDC/2A ports, Type C ports)
- Large-sized LCD screen to monitor and modify system parameters
- Optional 4G or WiFi module to remote control the inverter/charger by the RS485 com. port
- AC input overload relay for disconnecting from the grid when the fault occurs
- Circuit breaker on PV input for equipment safety
- Circuit breaker on battery output for batterysafety
- AC charging with PFC technology, high power factor for efficient energy consumption
- Bidirectional high-frequency transformer isolation topology
- Advanced MPPT technology: maximum trackingefficiency≥99.5%
- EMC design on AC output to avoid interference with AC load
- Long-term continuous operation at full power
- Pure sine wave output
- Comprehensive electronic protection
Home Battery Backup
MacBook
7105mAh≈105+times
Rice Cooker
600W≈ 4+hours
iPhone
2942mAh≈262+times
Television Set
100W≈ 25+hours
Coffee Maker
900W≈2.7+hours
Electric Oven / Toaster Oven
800W≈ 3.2hours
Impact Drill
1100w≈2.2+hours
Car Refrigerator
62W≈ 40+hours

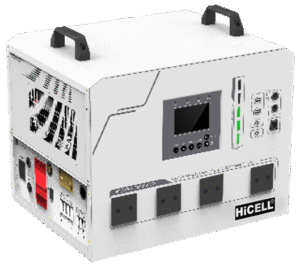

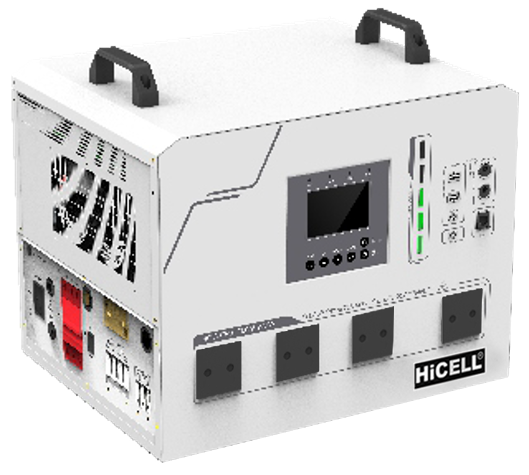

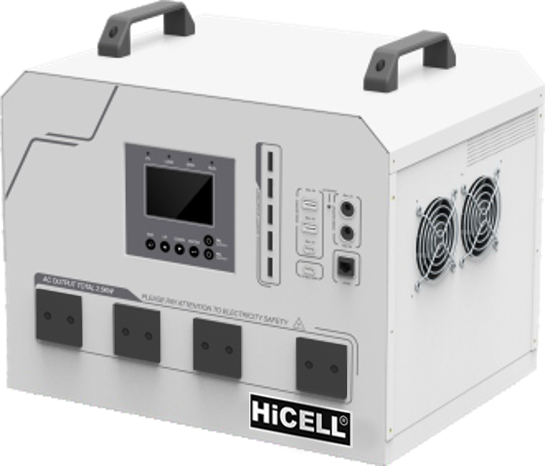

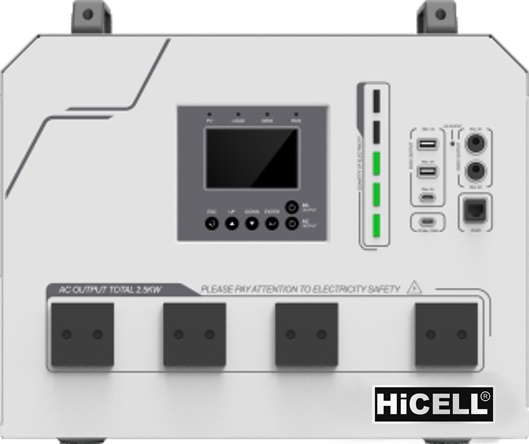

Apearance
- AC outlet
- LCD
- Battery SOC indicator
- USB-C port (100WPD)
- 5VDC/3A output port *3
- DC output indicator
- 12VDC/2A output port *2
- RS485 com. port
- Utility bypass overload relay
- PV input circuit breaker
- Battery output circuit breaker
- AC input port
- Extension battery fuse
- Outlet holes
- Extension battery terminal
- Grounding terminal
- PV inputterminals
- Power switch
- AC outputterminal
- Battery container
- Cooling fan

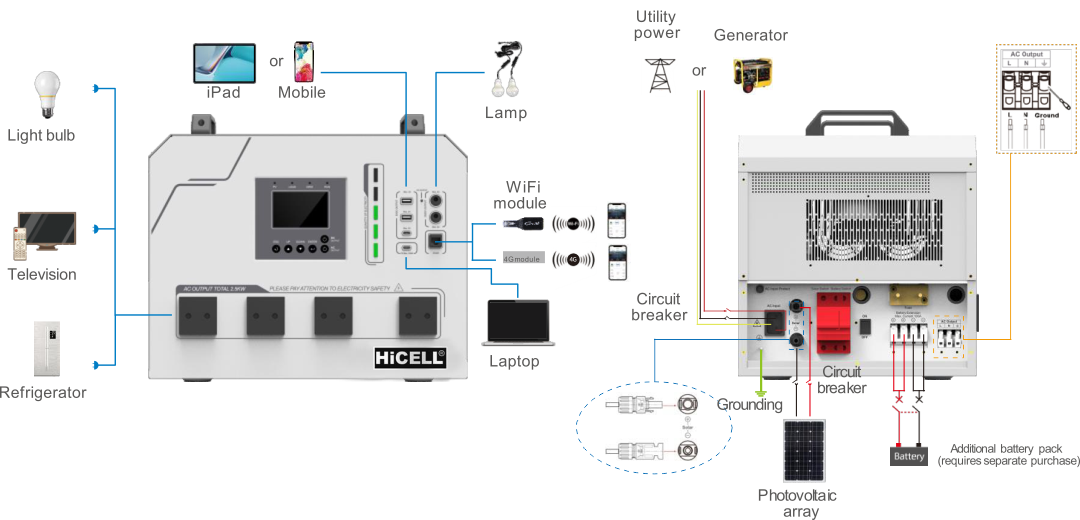

Solar System Connection

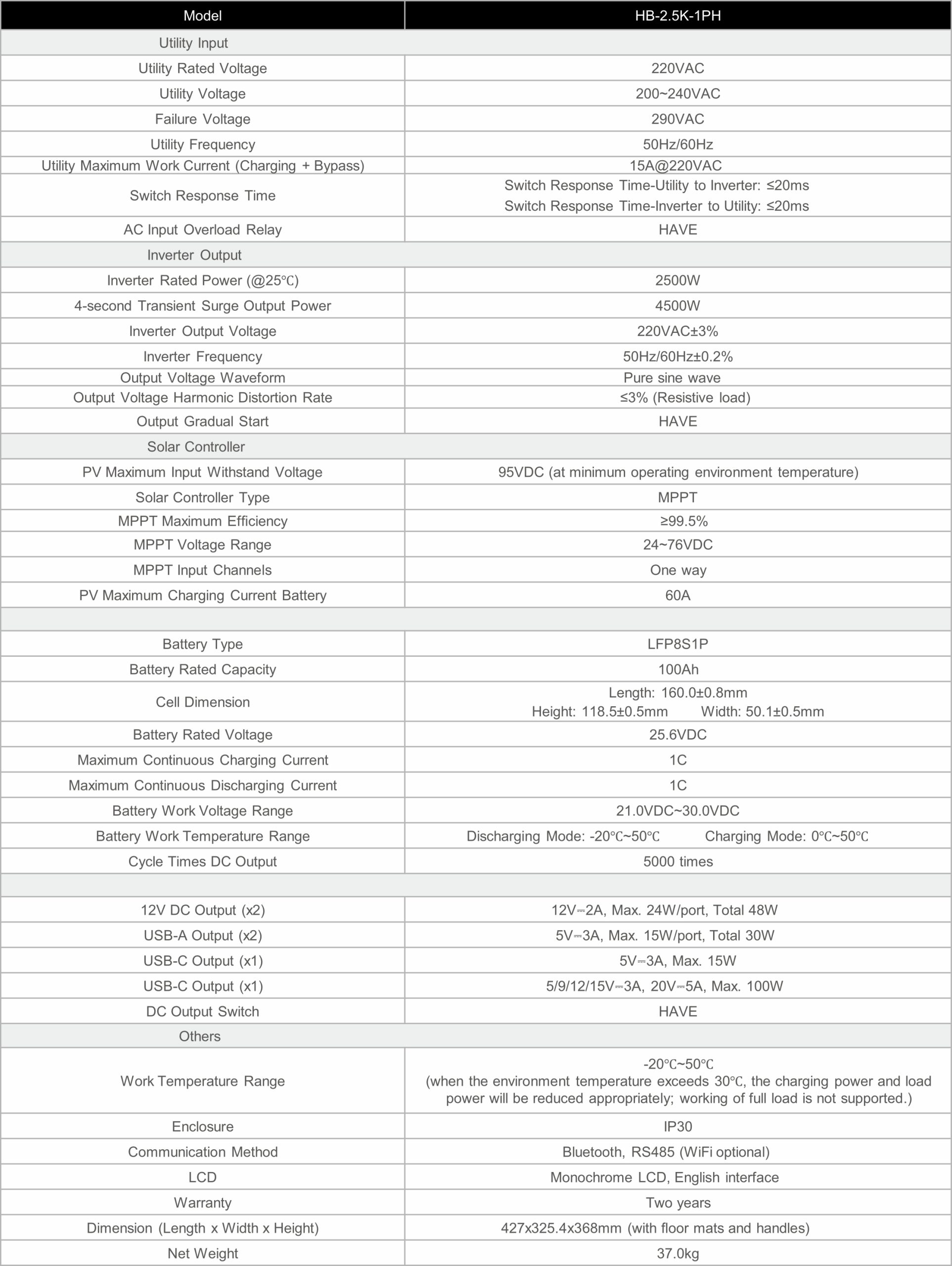

Specifications
