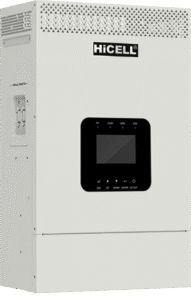

HiCELL Hybrid Offgrid Inverter

HYBRID OFFGRID SOLAR INVERTER
(3 Phase)

This product supports utility, oil engine and solar charging options. As well as for utility bypass, inverter output and energy management.

Advanced DSP chip with its control algorithm ensures high response speed, reliability and conversion efficiency.

Customers can achieve efficient energy utilization by flexibly using solar energy or utility power via customized settings.

This high-quality product ensures stable power supply and is suitable for hybrid power generation systems that combine solar, utility and oil engine.

It can meet the application requirements of customers in building cost-effective residential power supply systems.

Pure sine wave output.

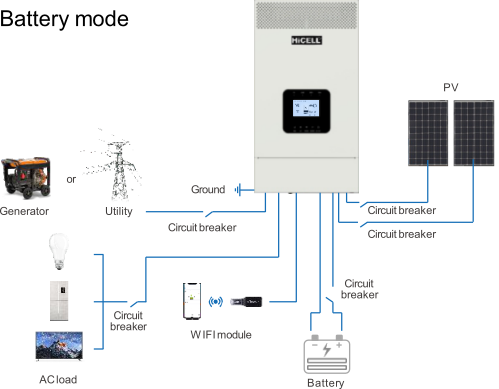

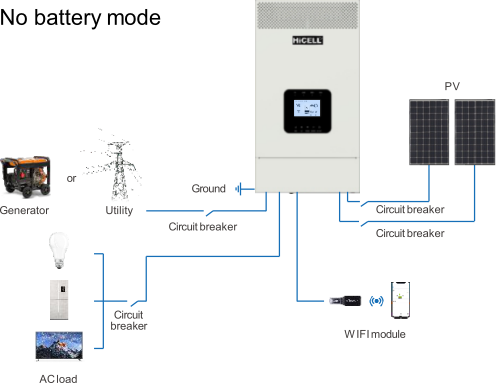

Supports battery or non-battery mode.
Lithium battery communication port to perform the safe charging and discharging.
Lithium battery self-activation.
PFC technology reduces the demand on the power grid capacity.
Advanced MPPT technology, with Max. tracking efficiency higher than 99.5%.

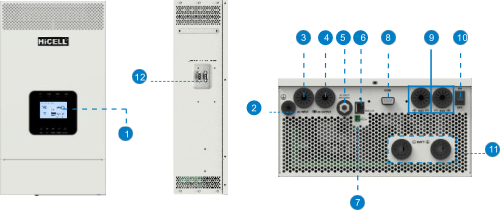

HI-5K-1PH supports two PV inputs to Improve PV utilization.
Supports charging from multiple types of generators
Battery charging or discharging current limit to compatible with different types of batteries.

Max utility charging current settings to flexibly configure utility charging power.
One-button control of AC output.
Large size LCD display for better status monitoring.
RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring.
Built-in Bluetooth to adjust settings through App.
Comprehensive electronic protections.
-20℃~+50℃ operating temperature range to meets more environment requirements.
