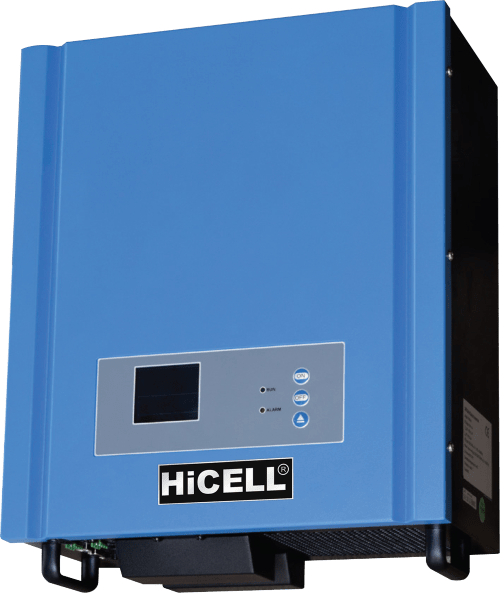

HiCELL OFFGRID

(Inverter Charger)

FEATURES :

  • High reliability: adopt high-speed DSP control system, combine advanced SPWM
    technology and high-speed power MOS
  • Operating mode selectable: energy storage priority or power supply priority
  • No PID attenuation damage for solar panels to ensure their service life
  • Flexible battery management system: auto switch three-stage charging mode shortens
    recharge time; wide charging current is selectable according to configured battery; flexible
    DOD (Depth of discharge) is settable to meet more applications
  • AC input with effective online synchronous stabilizing technology
  • Broad MPPT input voltage range
  • No-load auto shutdown function (optional)
  • Settable frequency (50Hz / 60Hz)
  • Mobile APP monitoring (additional)
  • Auto Power-On/Off function; real-time monitoring, test and intelligent startup / shutdown
    by RS232 or USB interface communicating with PC; remote monitoring by optional
    SNMP networks

TECHNICAL DATA SPECIFICATION

MODEL 500 W 1000 W 2000 W 3000 W
PV INPUT
Max. input voltage (VoC) 60 Vdc 100 Vdc 100 Vdc
Optimum operating voltage (Vmp) 16~48Vdc 33~80 Vdc 65~120 Vdc
Max. charging current 50 A 65 A
Recommended PV configuration 700 W 1400 W 2800 W 3500 W
AC INPUT
AC input range (bypass mode) 0~132 Vac / 0~264 Vac (high-end limit)
Rated input voltage 100 Vac / 110 Vac / 115 Vac / 120 Vac or 200 Vac / 220 Vac / 230 Vac / 240 Vac ± 25% (2500 W is only for 110 Vac; 3000 W is only for 220 Vac)
Rated input frequency 50 Hz / 60 Hz ± 5% / 10% / 15% (settable)
Max. charging current 20 A 30 A
INVERTER OUTPUT
Output voltage 100 Vac / 110 Vac / 115 Vac / 120 Vac ± 2% or 200 Vac / 220 Vac / 230 Vac / 240 Vac ± 2% (settable)(2500 W is only for 110 Vac; 3000 W is only for 220 Vac)
Rated output power 500 W 1000 W 2000 W 3000 W
Power factor 1
Rated output frequency 50 Hz / 60 Hz ± 1% (inverter mode)
Waveform Sinusoidal
Max. efficiency (resistive load) ≥ 78 % ≥ 82 % ≥ 85 %
Sleep mode Settable (< 3% load) access in ≤ 2min
Output voltage harmonic ≤ 3% (linear load)
BATTERIES
Battery voltage 12 Vdc 24 Vdc 48 Vdc
Battery type VRLA battery (default)
Charging current 5~50 A (settable) 5~65 A (settable)
DOD Settable 10.5~13.2 Vdc 21~26.4 Vdc 42~52.8 Vdc
Default 12 Vdc 24 Vdc 48 Vdc
EOD Settable 9.6~12 Vdc 19.2~24 Vdc 38.4~48 Vdc
Default 10.5 Vdc (default) 21 Vdc 42 Vdc
Equalizing charge voltage Settable 13.8~15 Vdc 27.6~30 Vdc 55.2~60 Vdc
Default 14.1 Vdc 28.2 Vdc 56.4 Vdc
Floating charge voltage Settable 13.2~13.8 Vdc 26.4~27.6 Vdc 52.8~55.2 Vdc
Default 13.6 Vdc 27.2 Vdc 54.5 Vdc
Restoration point of overvoltage 15.5 Vdc 31 Vdc 62 Vdc
OTHERS
Transfer time 3~6 ms (typical); ≤ 10 ms (max.)
Overload (linear load) 110% for 2 min, 125% for 1 min, 150% for 10s, 180% for 1s
ECO mode (optional) Load < 3% (settable, Yes / No settable)
No-load shutdown (optional) Load < 3%~50%, Yes / No settable
Load adaptation Inductive load: ≤ 30%; capacitive load: ≤ 50%; resistive load: ≤ 100%
Protections Output overload – short- circuit – overdischarge – overcharge – battery reverse polarity – PV reverse polarity
Lightning protection Class III
Communications RS232 / USB / RS485 ; SNMP / Wi-Fi / GPRS (optional)
Standards IEC62040, IEC / EN 61000
IP rating IP21
Display LCD & LED
Operating temperature 0° ~40°C
Relative humidity ≤ 93%
Noise < 50 dB
Dimensions (WxDxH) (mm) 365.5 x 442 x 210
Packaged dimensions (WxDxH) (mm) 455 x 520 x 283
Net weight (kg) 16.6 19.5 30.4 38.5
Gross weight (kg) 18.1 21 31.9 40
* All specifications subject to change without notice
